Pad Mounted Transformer 3 Phase 1000Kva 34.5Kv to 208V Radial Feed Ceramic Sleeve oil immersed power transformer

Markenbezeichnung:	WINLEY
Modellnummer:	ZGS-1000/34.5
Mindestbestellmenge:	1Einheit
Preis:	$5000-$150000
Verpackungsdetails:	Sperrholzkiste
Zahlungsbedingungen:	T/T

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

UL/cUL,CE,ISO

Dokumentieren:

Transformatortyp:

Pad montierter Transformator

Phase:

Dreiphasig

Feed-Typ:

Radialzufuhr

Kapazität:

1000 KVA

Primärspannung:

34.5KV

Sekundärspannung:

208Y/120

Kühlkurs:

ONAN; Selbstgekühlt

Standard:

ANSI/IEEE C57.12.34

Versorgungsmaterial-Fähigkeit:

1000Set/Monat

Hervorheben:

Ceramic Sleeve Radial Feed Transformer

34.5Kv Radial Feed Transformer

1000Kva Radial Feed Transformer

Beschreibung des Produkts

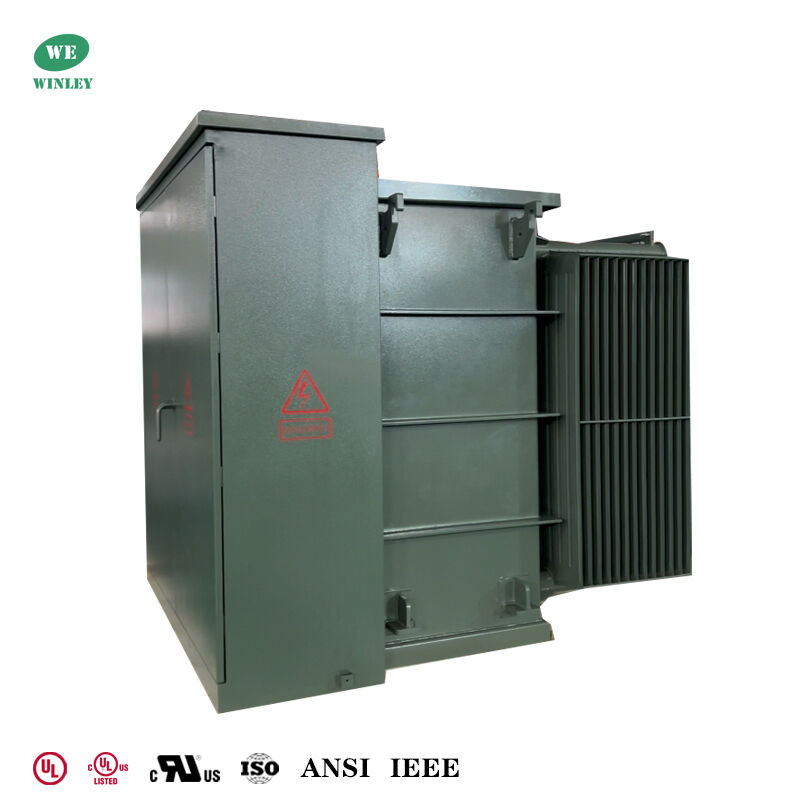

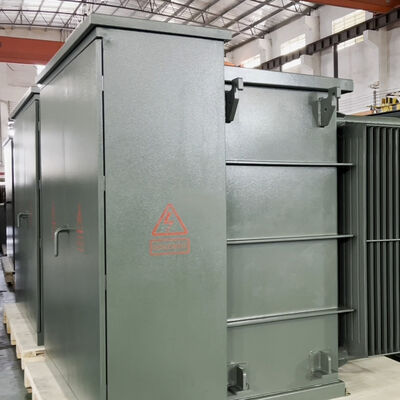

Pad Mounted Transformer 3 Phase 1000Kva 34.5Kv to 208V Radial Feed Ceramic Sleeve oil immersed power transformer

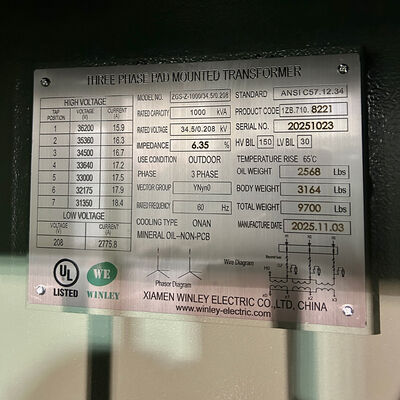

Winley electric's 1000 kVA three phase pad mounted transformer stepping 34.5 kV down to 208Y/120 V with multiple tap positions for flexible voltage adaptation.

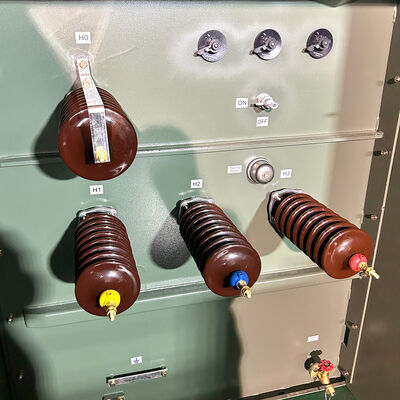

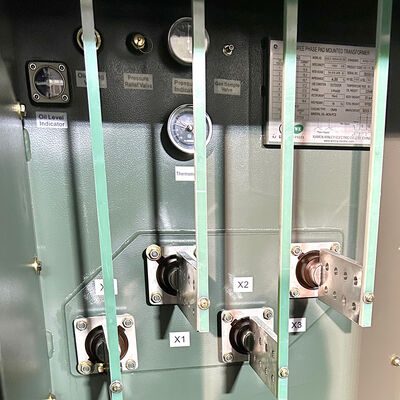

A standout feature is the high‑quality ceramic high‑voltage bushings, which provide superior pollution and flash‑over resistance, enhanced mechanical strength and long‑term dielectric stability—reducing maintenance and extending service life.

WINLEY Electric's three-phase pad transformers are UL/CUL certified and comply with ANSI/IEEE/DOE/CSA standards, with fast delivery within 7-35 days.

Main Technical Specifications

No.	Particulars	Unit	Specification
1	Type	~	pad mounted, loop feed
2	Rated capacity	kVA	1000
3	No. of Phase	~	3
4	Primary voltage	V	34500
4	Primary bushing	~	(4) 35kV class, BIL150kV Porcelain bushing
4	BIL	kV	150
5	Secondary voltage	V	208Y/120
5	Secondary bushing	~	(4) 10-hole spade
5	BIL	kV	30
6	Tapping type	~	off-circuit
7	Tapping range	V	36200, 35360, 34500, 33640, 33000, 32175, 31350
8	Cooling method	~	ONAN
9	Rated frequency	Hz	60
10	Vector group	~	Dyn1
11	Insulation class	~	A
12	Temperature rise	℃	65/60 (winding/top oil)

Technical Drawings

Advantages of Pad Mounted Transformer

Advantages of Pad Mounted Transformer
1. Space-Saving Design
Pad-mounted transformers feature a compact, high-efficiency design, making them an ideal choice for locations with limited available space. They eliminate the need for additional supporting structures such as utility poles or dedicated buildings during installation.
2. Underground Installation Capability
Unlike overhead transformers, pad-mounted transformers can be installed underground—delivering a safer and more unobtrusive solution for power distribution. This underground placement also reduces their vulnerability to environmental hazards and damage.
3. Enhanced Safety Standards
Pad-mounted transformers are engineered with tamper-proof and robust security features. Housed in a durable metal enclosure, they completely eliminate the risk of accidental contact with live electrical components.
4. Superior Aesthetics
Pad-mounted transformers typically integrate seamlessly with their surrounding environment, positioning them as a more suitable option for residential communities and areas subject to strict zoning regulations.

Detailed Specifications

Rated Power (KVA)	High Voltage (KV)	Low Voltage (V)	No-load Loss (W)	On-load Loss (W)	Height (mm)	Depth (mm)	Width (mm)	Weight (kg)	Weight (Lbs)
75KVA	34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others	277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347	180	1250	1430	910	1930	645	1422
150KVA	Same as above	Same as above	280	2200	1530	980	1510	989	2180
300KVA	Same as above	Same as above	480	3650	1680	1080	1660	1415	3119
500KVA	Same as above	Same as above	680	5100	1790	1160	1810	1905	4200
750KVA	Same as above	Same as above	980	7500	2030	1300	2030	2755	6074
1000KVA	Same as above	Same as above	1150	10300	1854	1549	1651	3235	7132
1500KVA	Same as above	Same as above	1640	14500	2150	1570	2210	5835	12864
2000KVA	Same as above	Same as above	2160	20645	2220	1600	2380	6430	14175
2500KVA	Same as above	Same as above	2680	23786	2330	1650	3070	8865	19544
3000KVA	Same as above	Same as above	3300	30300	2460	1850	3260	11300	24912
3735KVA	Same as above	Same as above	4125	37875	2680	2060	4080	14400	31746

Production Process
