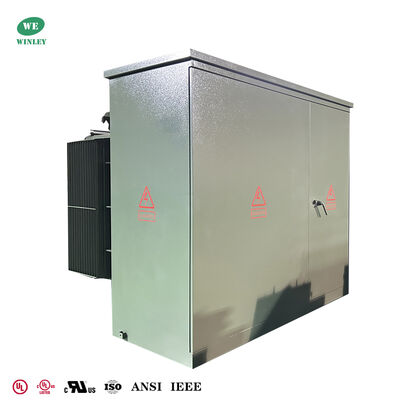

Three Phase Pad Mounted Transformer Oil Type 1500kva 34500V To 208V Electrical Transformer Residential

Markenbezeichnung: WINLEY
Modellnummer: ZGS-1500/35
Mindestbestellmenge: 1Einheit
Preis: $5000-$150000
Verpackungsdetails: Sperrholzkiste
Zahlungsbedingungen: T/T
Einzelheiten
Beschreibung des Produkts
Einzelheiten
Herkunftsort:
China
Zertifizierung:
UL/cUL,CE,ISO
Transformatortyp:
Drei-Phasen-Pad-montierte Transformator
Vektorgruppe:
Dyn1
Temperaturanstieg:
65/60℃
Kapazität:
1500 KVA
Primärspannung:
34.5KV
Sekundärspannung:
208Y/120
Kühlkurs:
ONAN/KNAN
Standard:
ANSI/IEEE C57.12.34
Versorgungsmaterial-Fähigkeit:
1000Set/Monat
Hervorheben:

Residential 34500V Pad Mounted Transformer

,

Oil Type 1500kva Pad Mounted Transformer

,

208V Pad Mounted Transformer

Beschreibung des Produkts
Three Phase Pad Mounted Transformer Oil Type 1500kva 34500V To 208V Electrical Transformer Residential
Winley’s pad‑mounted, radial‑feed 1,500 kVA distribution transformer — engineered for dependable performance in commercial and utility applications. Designed to meet tough field conditions while delivering efficiency and long service life, this unit combines proven transformer technology with attention to manufacturability and fast delivery.
Three Phase Pad Mounted Transformer Oil Type 1500kva 34500V To 208V Electrical Transformer Residential 0
Three Phase Pad Mounted Transformer Oil Type 1500kva 34500V To 208V Electrical Transformer Residential 1   Three Phase Pad Mounted Transformer Oil Type 1500kva 34500V To 208V Electrical Transformer Residential 2

Why Choose Us?



1. WINLEY manufactures a full range of three-phase transformers, with capacities ranging from 45-5500KVA. Products comply with standards such as DOE 2016, IEEE/ANSI (C57.12.34), CSA (C227.4 & C227.5), and NEMA.

2. WINLEY's three-phase transformers are UL/cUL certified, and UL partner certification can be applied for upon customer request.

3. Winley possesses extensive design and manufacturing experience and professional, reliable after-sales service. Our products are widely recognized by North American utilities.

4. Winley has strong supply capabilities and can deliver quickly within 7-35 days.

Three Phase Pad Mounted Transformer Oil Type 1500kva 34500V To 208V Electrical Transformer Residential 3
Main Technical Specifications
No. Particulars Unit Specification
1 Type ~ pad mounted, loop feed
2 Rated capacity kVA 1500
3 No. of Phase ~ 3
4 Primary voltage V 34500

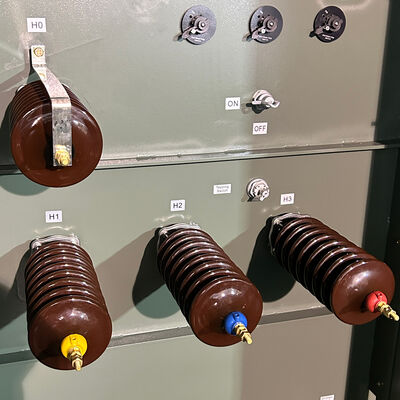

4 Primary bushing ~ (4) 35kV class, BIL150kV Porcelain bushing
4 BIL kV 150
5 Secondary voltage V 208Y/120

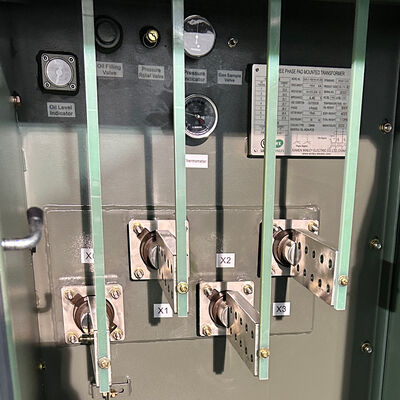

5 Secondary bushing ~ (4) 10-hole spade
5 BIL kV 30
6 Tapping type ~ off-circuit
7 Tapping range V 36200, 35360, 34500, 33640, 33000, 32175, 31350
8 Cooling method ~ ONAN
9 Rated frequency Hz 60
10 Vector group ~ Dyn1
11 Insulation class ~ A
12 Temperature rise ℃ 65/60 (winding/top oil)
Technical Drawings
Three Phase Pad Mounted Transformer Oil Type 1500kva 34500V To 208V Electrical Transformer Residential 4
Feature
1.Primary Switching
1)5-position tap changer.
2)4 position load break switch,Can be operated a hot stick and allows for flexibility in repair and maintenance.
2.termination connection
1)Primary power cables are connected with elbow connectors.
2)Externally clamped bushing wells with loadbreak inserts.
3)Integral loadbreak or non-loadbreak bushings.
3.Secondary termination
Externally clamped bushings with NEMA 4-hole, 6-hole.8-hole,10-hole or 12-hole spades , Spade supports are available.
4.protective device
1) Bayonet fuses partial-range current-limiting fuses.
2) Automatic action pressure relief device.
3) Oil level gauge.
4) Oil temperature gauge.
5) Pressure vacuum gauge.
6) Drain valve with sampler.
7)Distribution class, metal oxide arresters, 3-36 kV.
8)Distribution class, valve-type lightning arresters,3-27 kV.
Detailed Specifications
Rated Power (KVA) High Voltage (KV) Low Voltage (V) No-load Loss (W) On-load Loss (W) Height (mm) Depth (mm) Width (mm) Weight (kg) Weight (Lbs)
75KVA 34.5KV 4.160KV 12.47KV 13.2KV 13.8KV 24940GrdY/14400 1247Grdy/7200 4160GrdY/2400 or others 277V 347V 480V 600V 120/240V 208GrdY/120 415GrdY/240 480GrdY/277 600Y/347 180 1250 1430 910 1930 645 1422
150KVA Same as above Same as above 280 2200 1530 980 1510 989 2180
300KVA Same as above Same as above 480 3650 1680 1080 1660 1415 3119
500KVA Same as above Same as above 680 5100 1790 1160 1810 1905 4200
750KVA Same as above Same as above 980 7500 2030 1300 2030 2755 6074
1000KVA Same as above Same as above 1150 10300 1854 1549 1651 3235 7132
1500KVA Same as above Same as above 1640 14500 2150 1570 2210 5835 12864
2000KVA Same as above Same as above 2160 20645 2220 1600 2380 6430 14175
2500KVA Same as above Same as above 2680 23786 2330 1650 3070 8865 19544
3000KVA Same as above Same as above 3300 30300 2460 1850 3260 11300 24912
3735KVA Same as above Same as above 4125 37875 2680 2060 4080 14400 31746
Production Process
Three Phase Pad Mounted Transformer Oil Type 1500kva 34500V To 208V Electrical Transformer Residential 5 Three Phase Pad Mounted Transformer Oil Type 1500kva 34500V To 208V Electrical Transformer Residential 6 Three Phase Pad Mounted Transformer Oil Type 1500kva 34500V To 208V Electrical Transformer Residential 7
